Rockler Pneumatic Clamping System

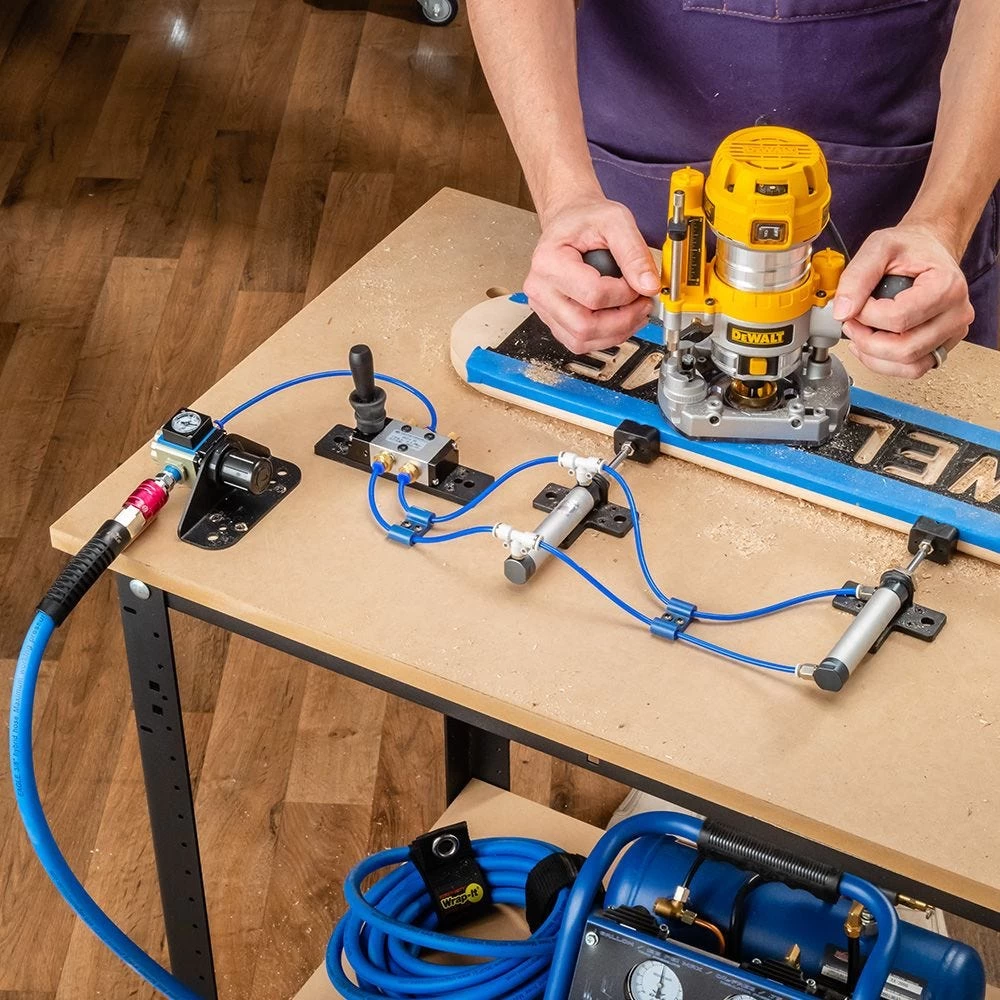

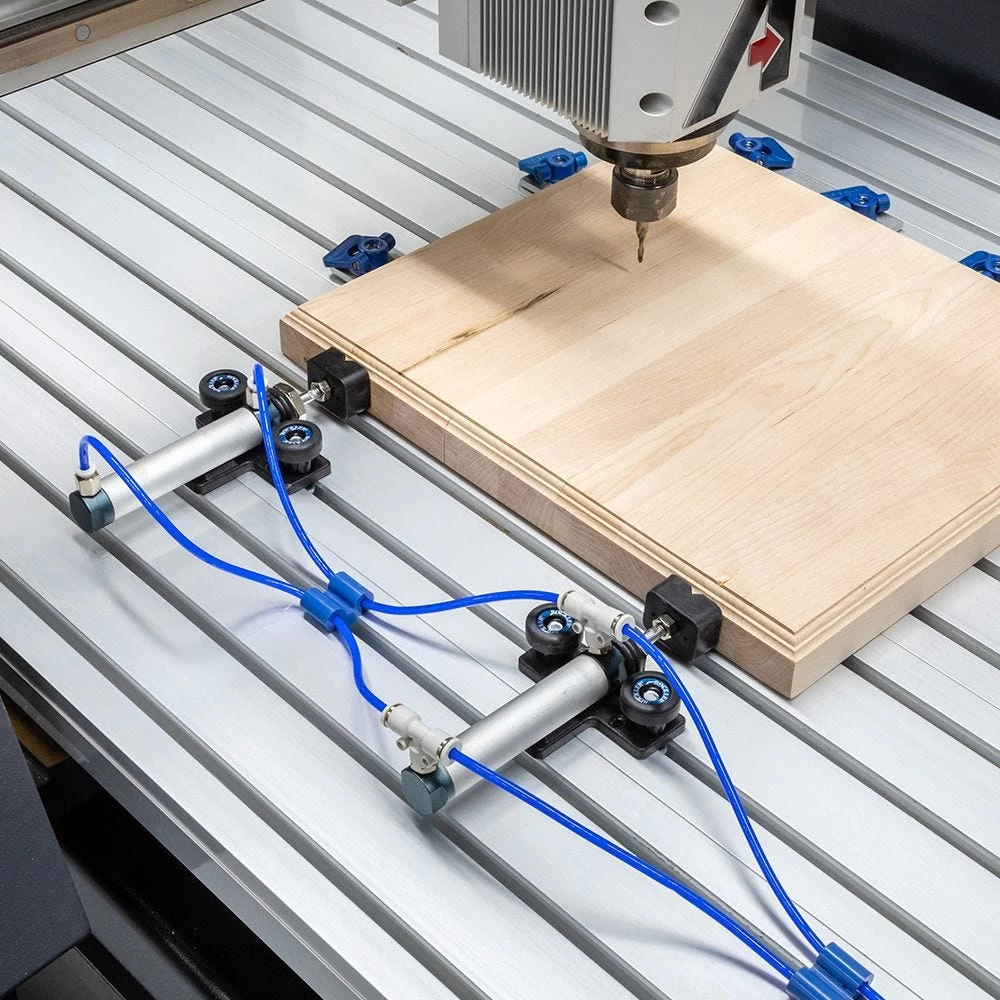

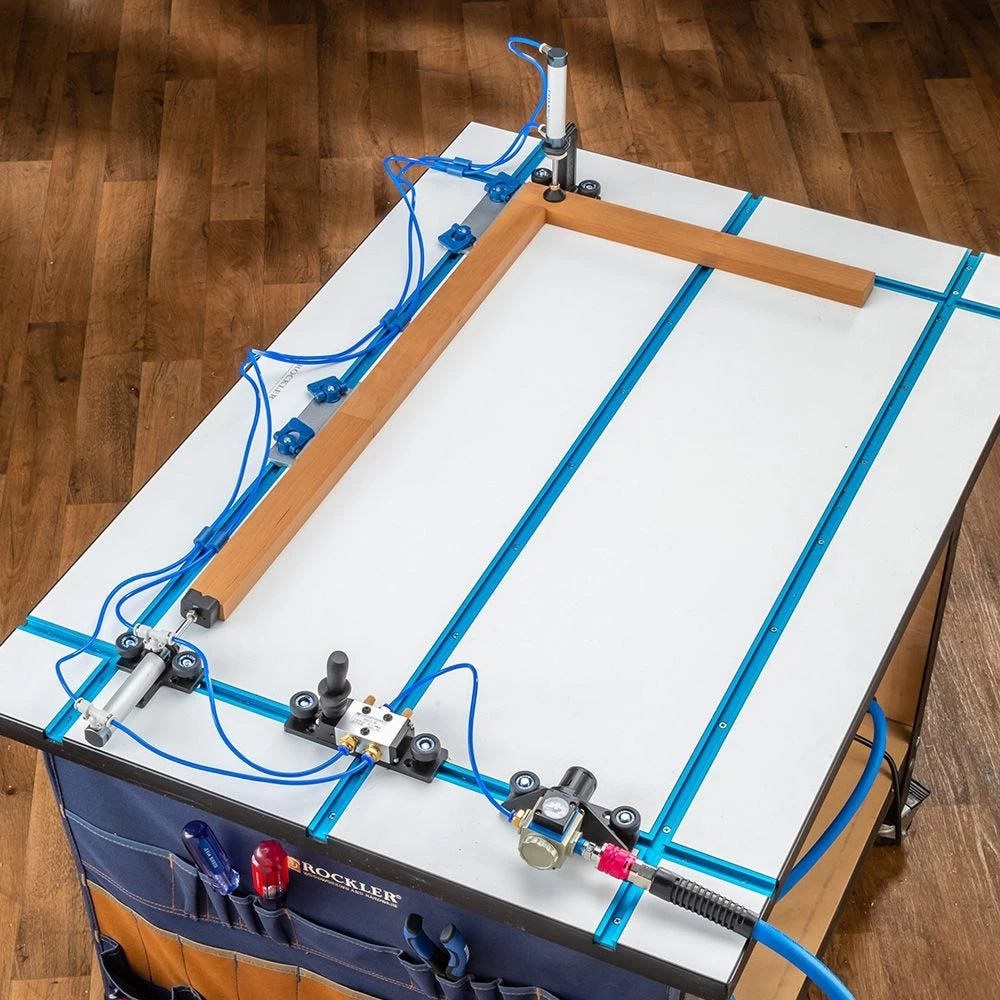

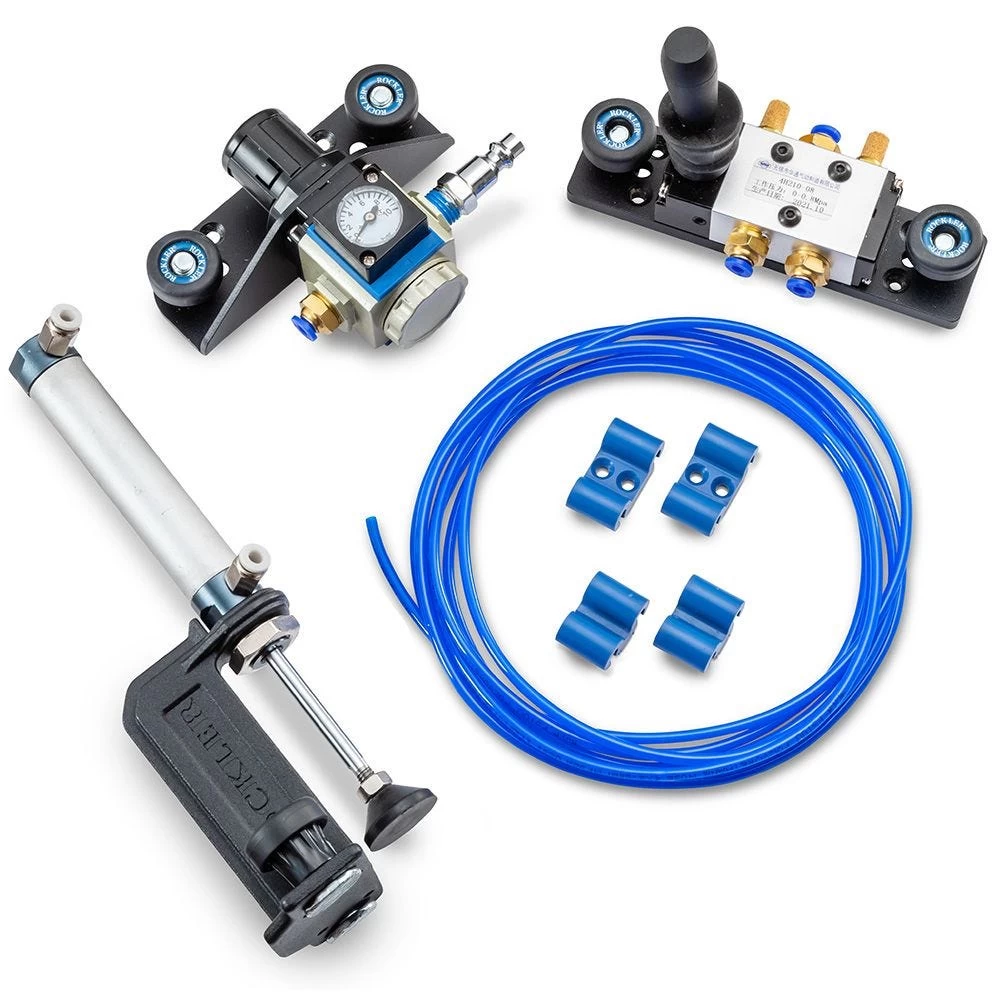

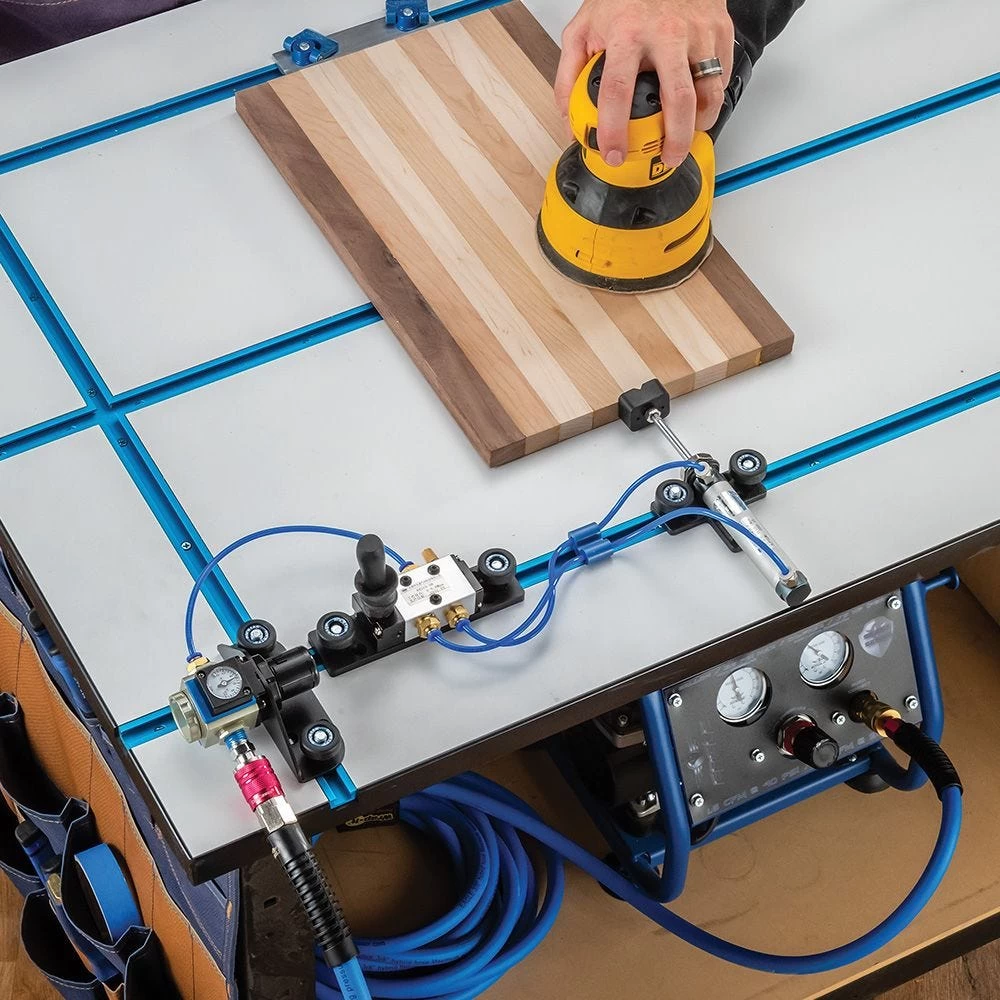

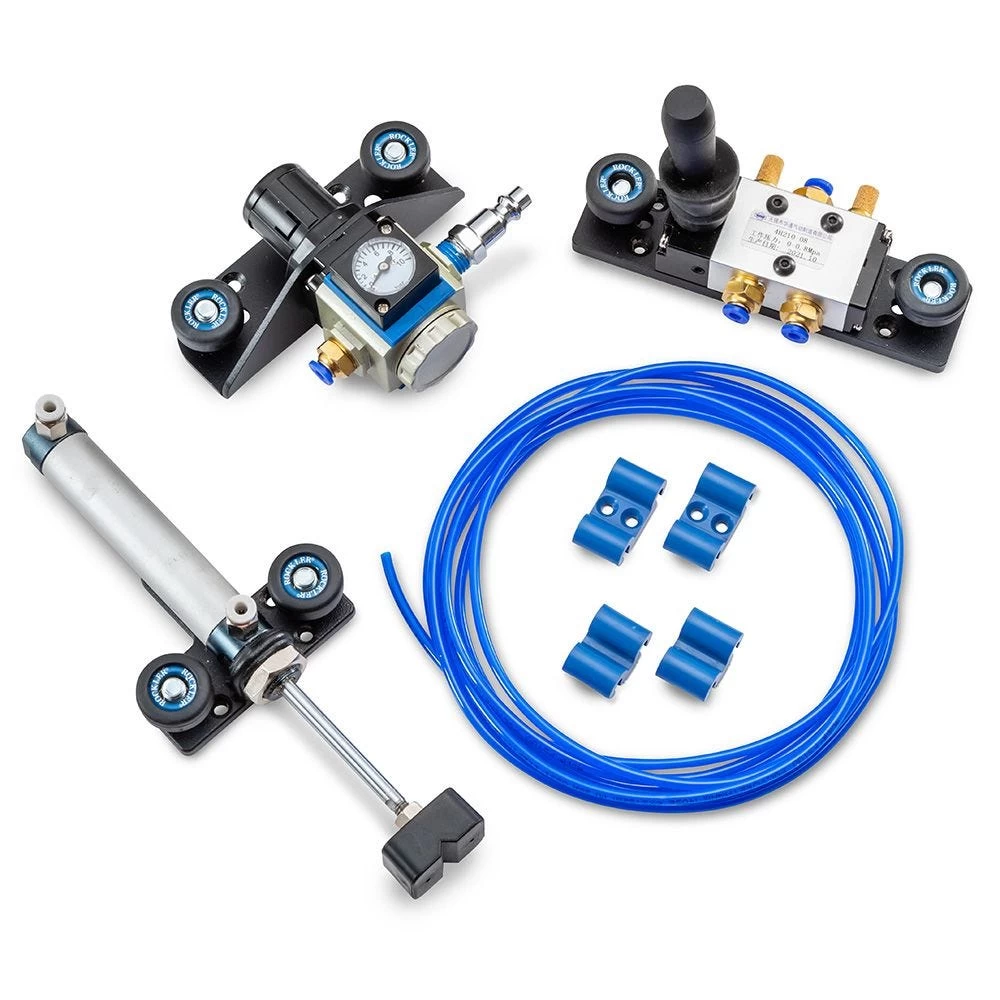

A flick of the switch is all it takes to provide strong clamping power—up to 34 pounds—with these pneumatic clamp kits. Their speed makes them ideal for repetitive clamping tasks, such as for face frame assembly, and as hold-downs or push clamps for drill presses and CNC tables. Rockler makes ordering easy with your choice of two all-in-one Starter Kits that include all the components* you need for either a vertical or horizontal clamp. You can then easily add additional clamps (up to 4 per regulator) by purchasing vertical or horizontal Expansion Kits (both types can use the same regulator and switch, at the same time). The clamps slide into standard T-track for easy adjustability, and they can also be screwed down for more permanent clamping fixtures.

Features:

• Fast, powerful clamping that engages and disengages with a flick of the included switch
• Ideal for repeated clamping tasks and production applications
• Starter Kits include everything needed to set up a pneumatic clamp, except for the air compressor and stop to clamp against
• Add Expansion Kits to run multiple clamps (up to 4) on the same switch

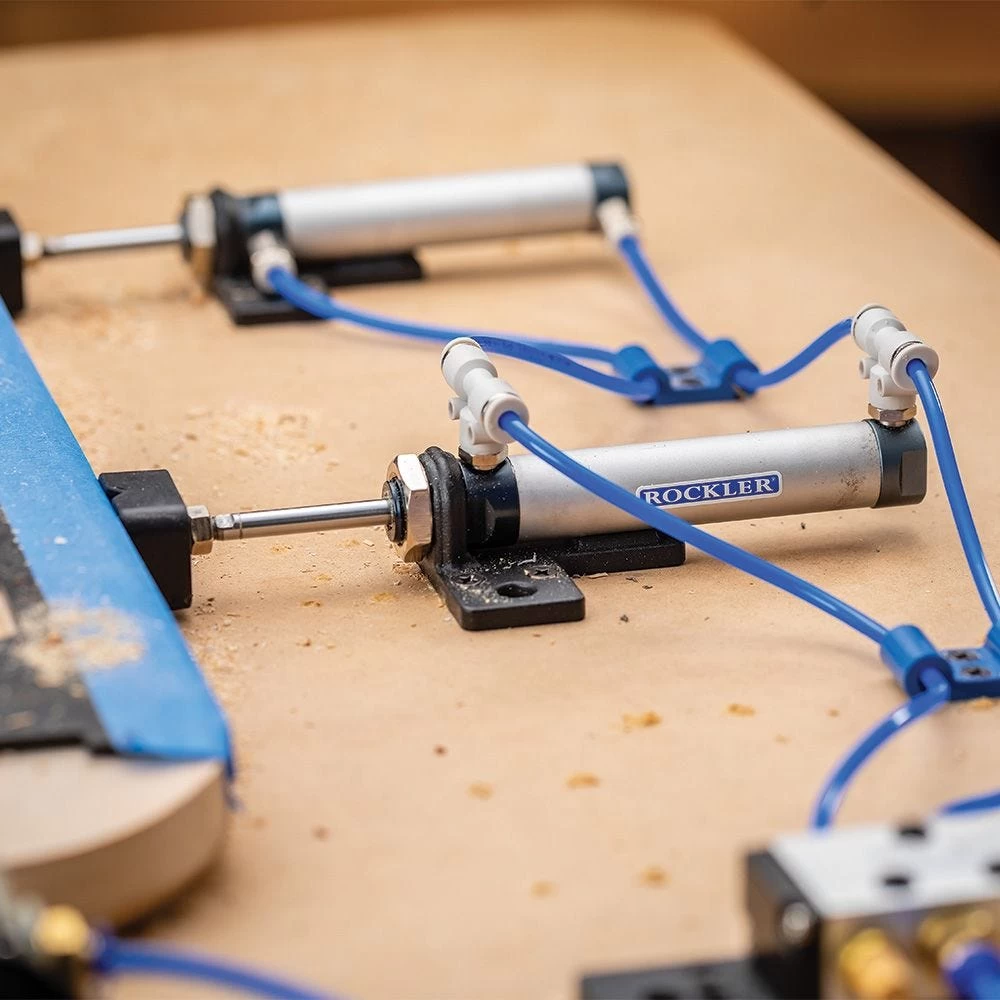

• Cylinder brackets mount to T-Track with included T-bolts and knobs or directly to the top #8 screws (not included)

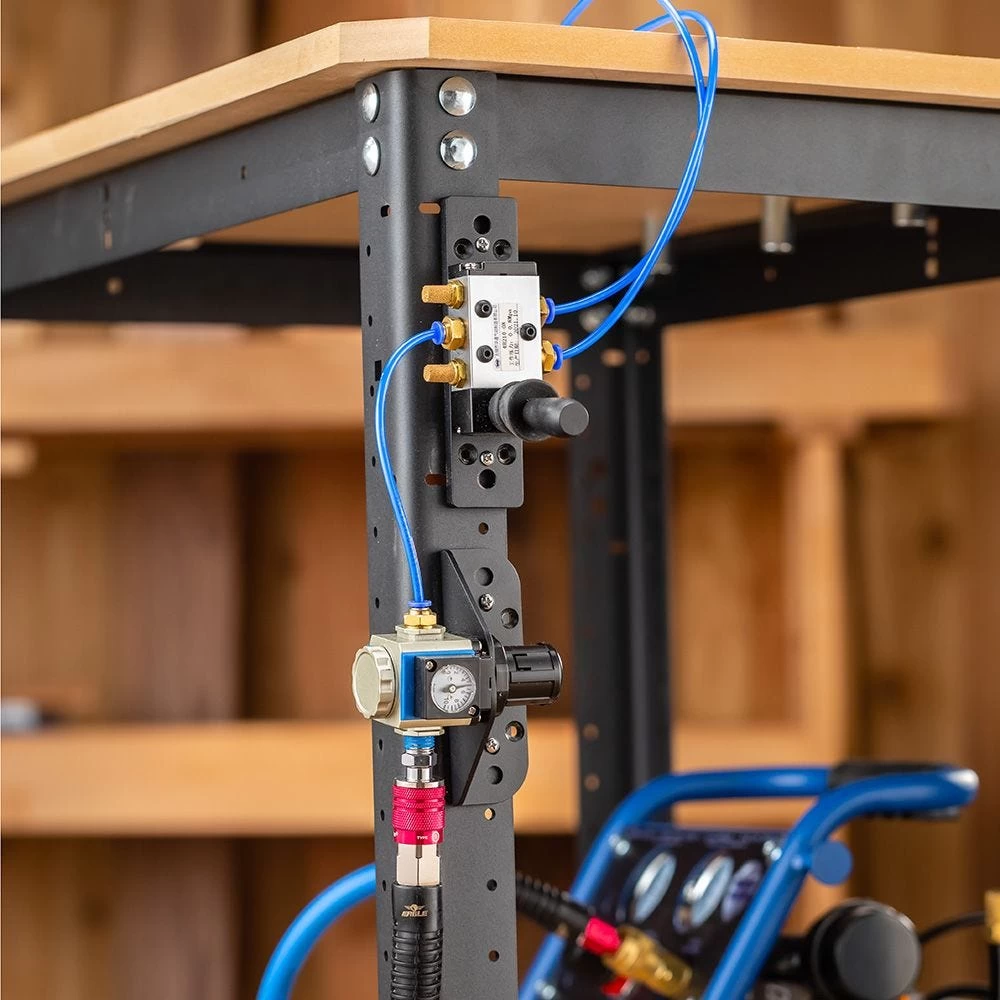

• Regulator and switch brackets mount to T-Track or solid surface, as well as to Rockler Rock-Steady Shop Stand legs with 32mm-spaced holes
• Regulator includes 1/4” NPT valve for connecting to air hose
• Starter Kits include 10′ of 4mm tubing (Expansion Kits include 5′)—cut to length to fit your application
• Quick-release fittings allow fast, easy connection of tubes—just press tube in to install and press ring on fitting to release
• Clamp feet thread onto cylinder stem to provide non-marring pressure
• Each clamp features 50mm throw for nearly 2” of clamping range
• Four brackets for managing tubing—two snap into T-Track; two mount with #6 screws

*Note: Requires an air compressor (sold separately). Most standard portable compressors will work. Horizontal clamps also require a stop to clamp against.
