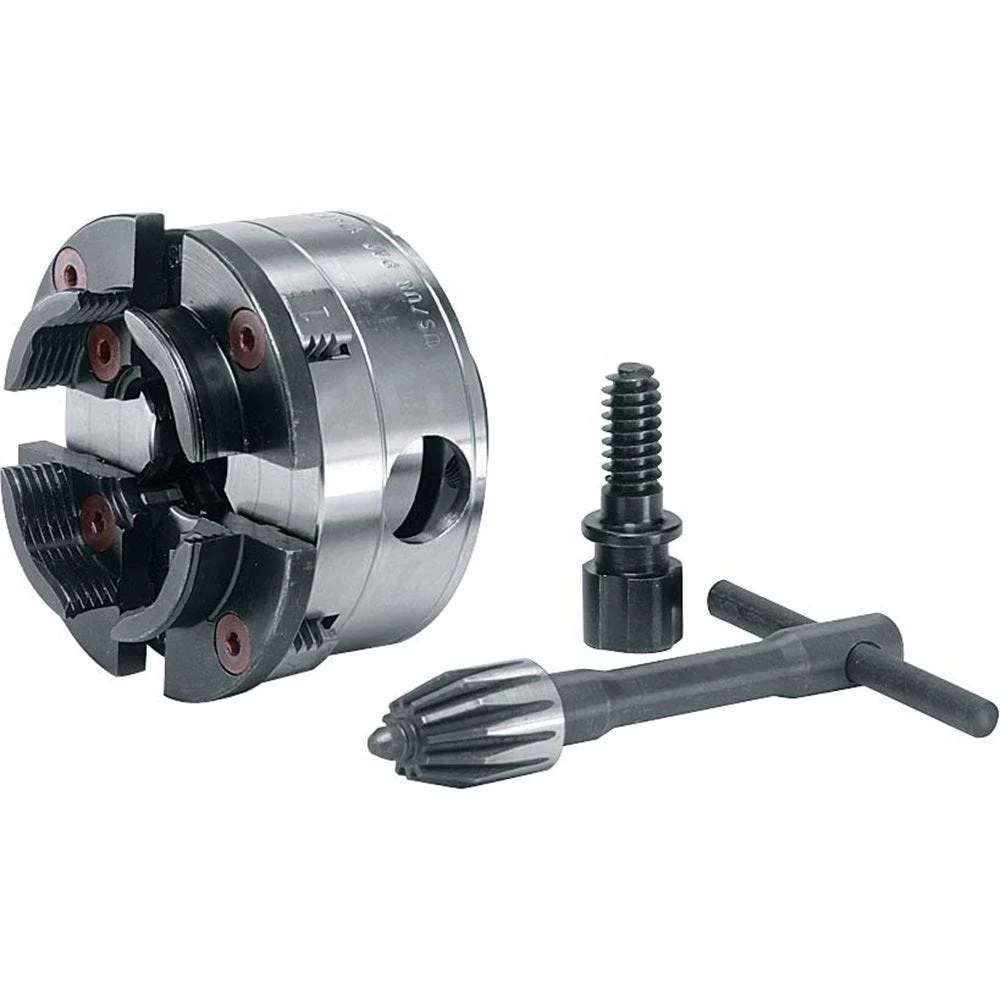

Oneway Talon Chuck System

This is an ideal chuck for owners of mini and mid-size lathes who want a power-grip, key-operated chuck. It’s perfect for lathes with a 16″ swing or less! Features single-hand key operation, patented over-extension safety system, 4-jaw scroll chuck and smooth-glide base jaw design. The nickel-plated body of the Talon Chuck is 3-1/2” in diameter, and it comes with standard #2 jaws (internal chucking capacity of 2″ to 3-1/2″ and external capacity of 1-5/8″ to 2-7/8″).Taper Lock Adapter not included.

Requires one of the three inserts listed below (sold separately) for mounting on the lathe. The insert must fit the lathe’s drive spindle.

• 3/4″ x 16 tpi Insert (#22733)
• 1″ x 8 tpi Insert (#22726)
• 1-1/4″ x 8 tpi Insert (#21358)
