Blum 105° Compact Clip Soft-Close Hinges For Face Frame, Smaller Overlays

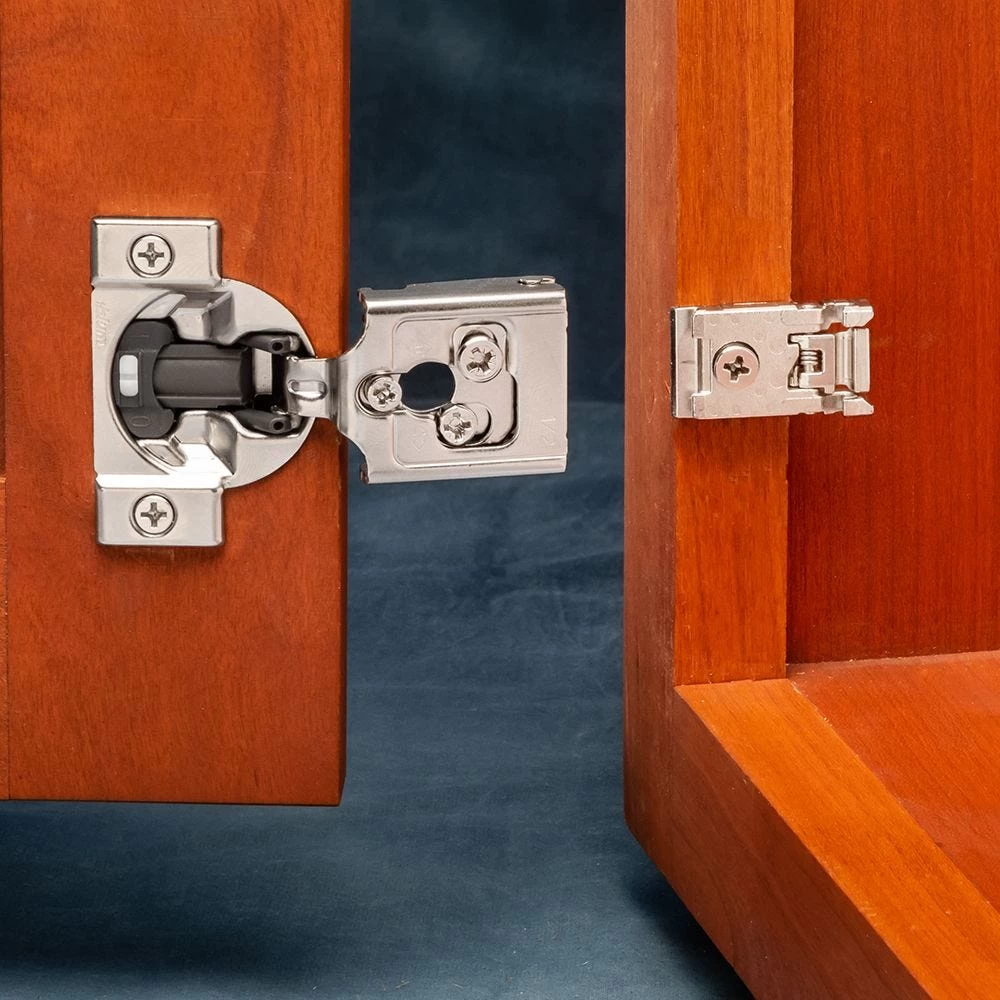

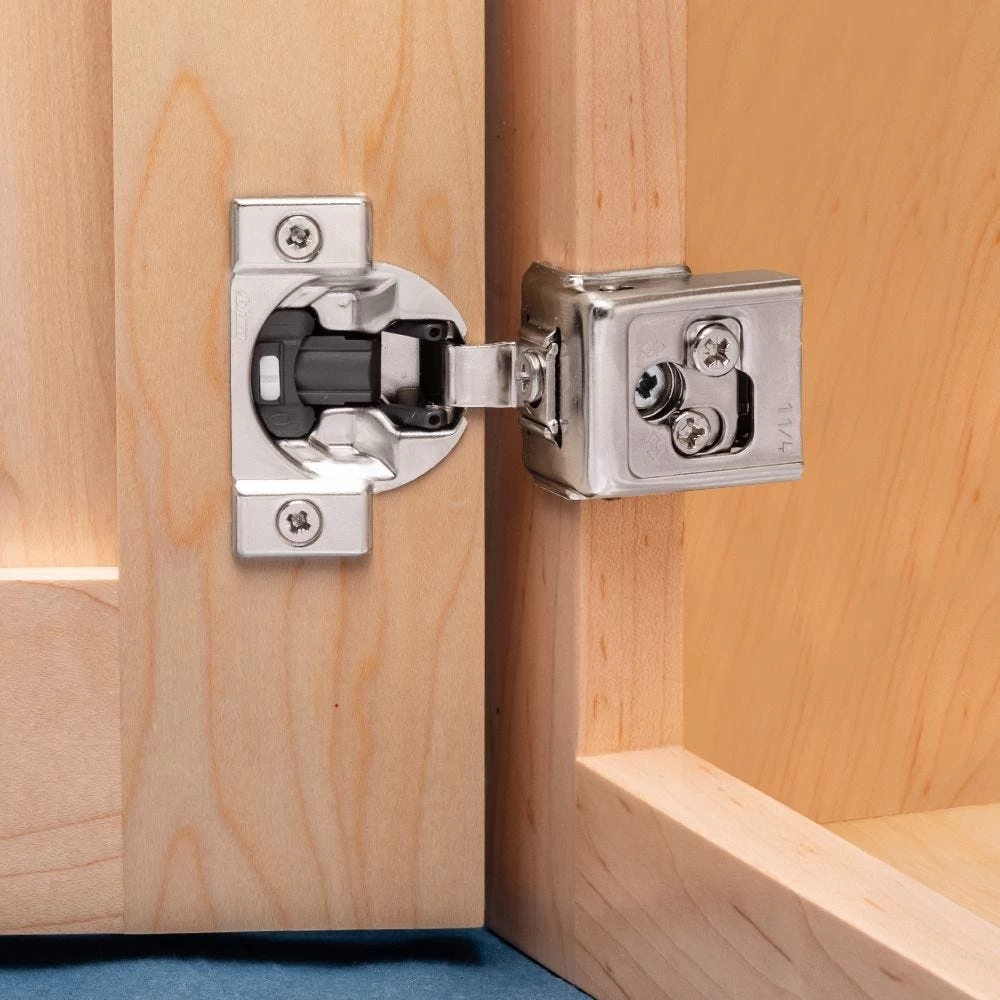

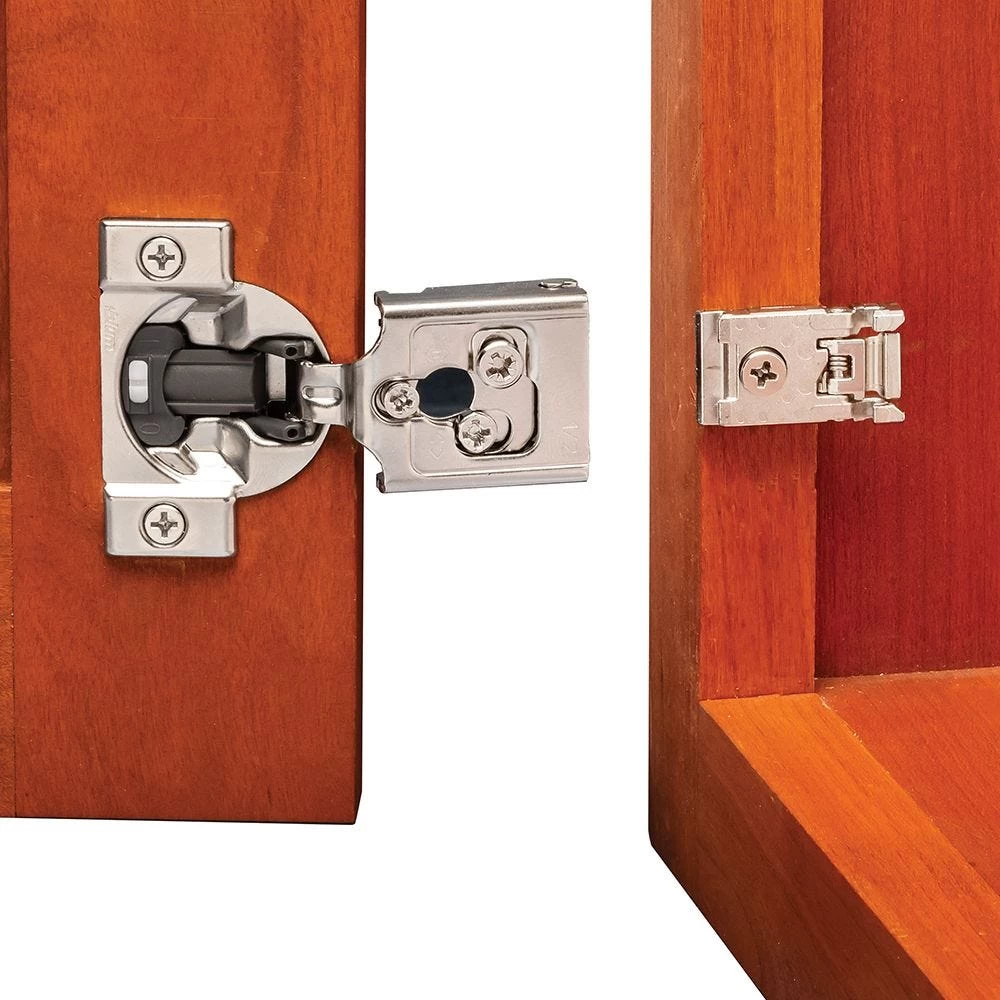

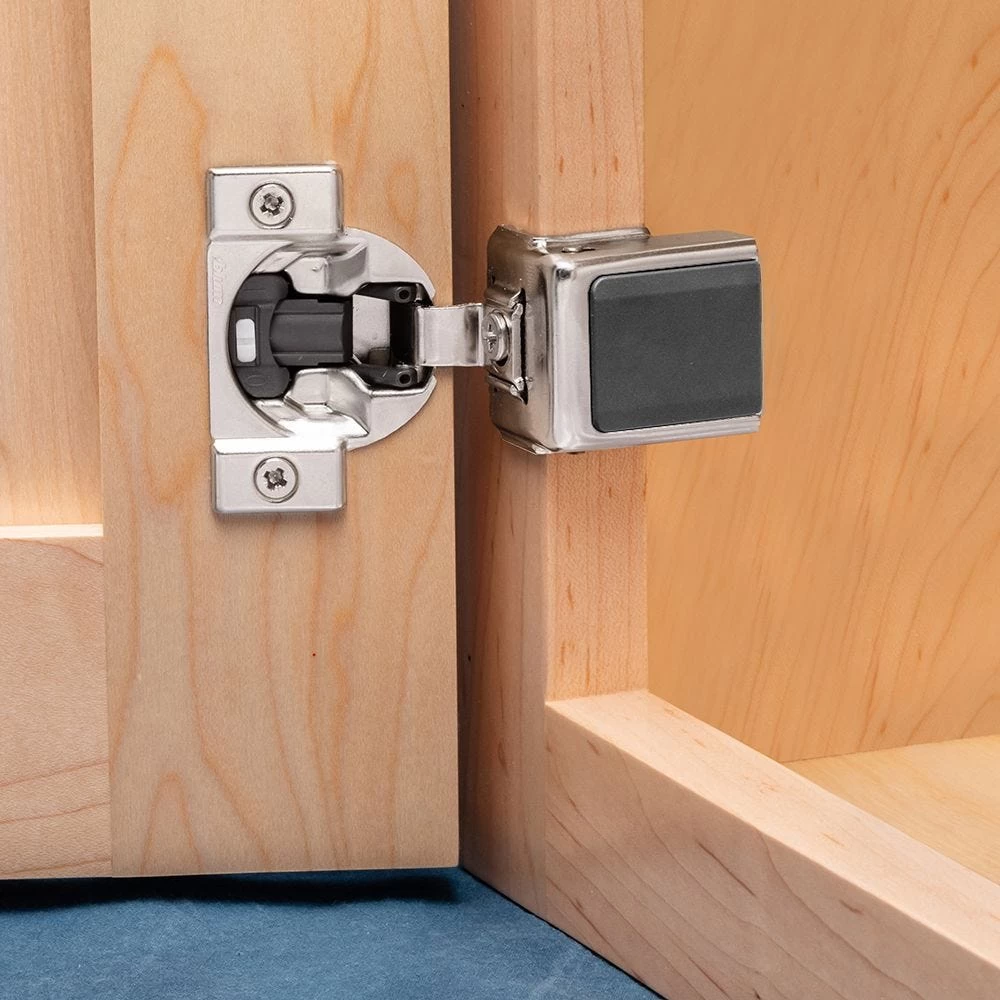

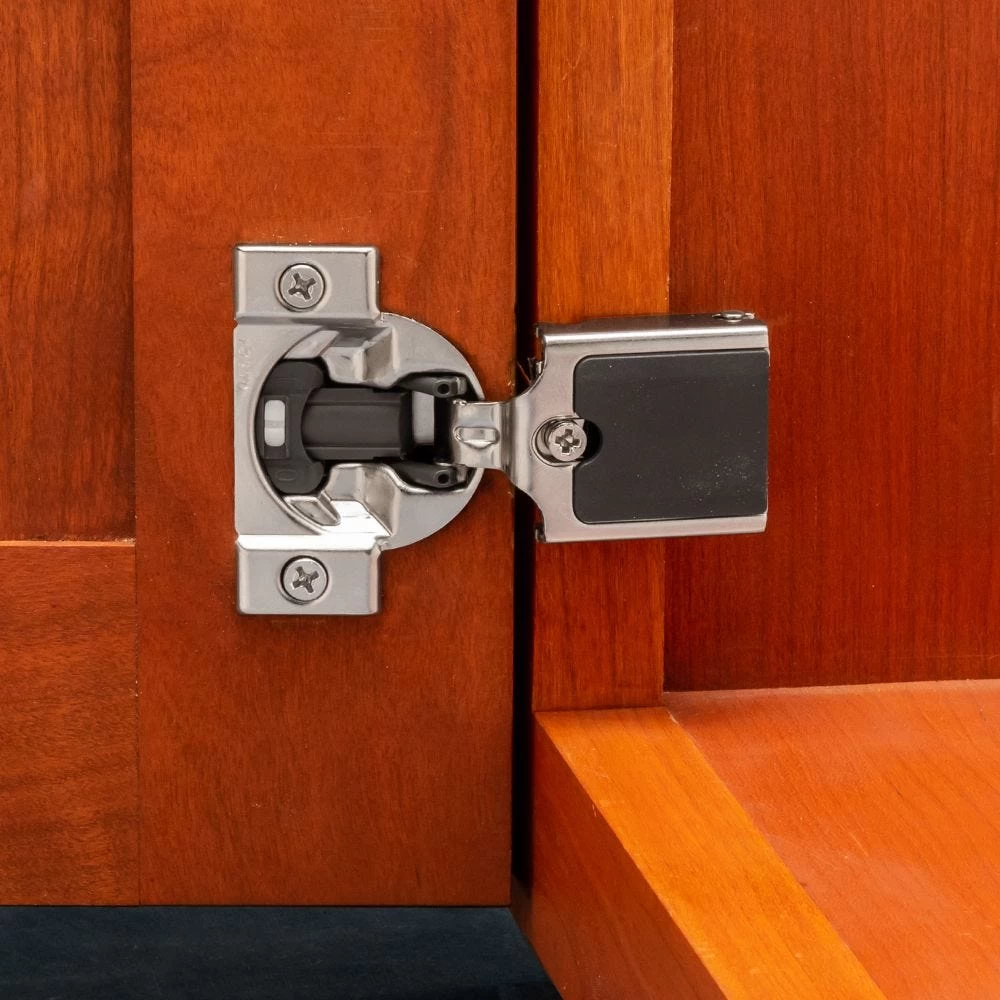

Blum’s overlay Compact Clip hinges bring you all the premium features of a long-arm Euro hinge—clip-on mounting and demounting, soft-close action and 3-way cam adjustments—in a compact package that looks great, has an attractive price, and won’t take up space inside the cabinet. Since Compact Clip hinges arrive pre-clipped onto the plates, with the mounting screws pre-started, mounting them couldn’t be easier. Once mounted to the door, simply hook the hinges over the cabinet face and drive the two screws! With Compact Clip BLUMotion, the soft-close mechanism fits entirely within the hinge cup, maintaining the compact form factor. Each hinge has a switch for turning the soft-close feature off—often required for proper closure of small doors. Three-way cam adjustments for up/down, left/right and in/out let you align the doors perfectly with each other.

Blum Compact Clip 30C2 Features:

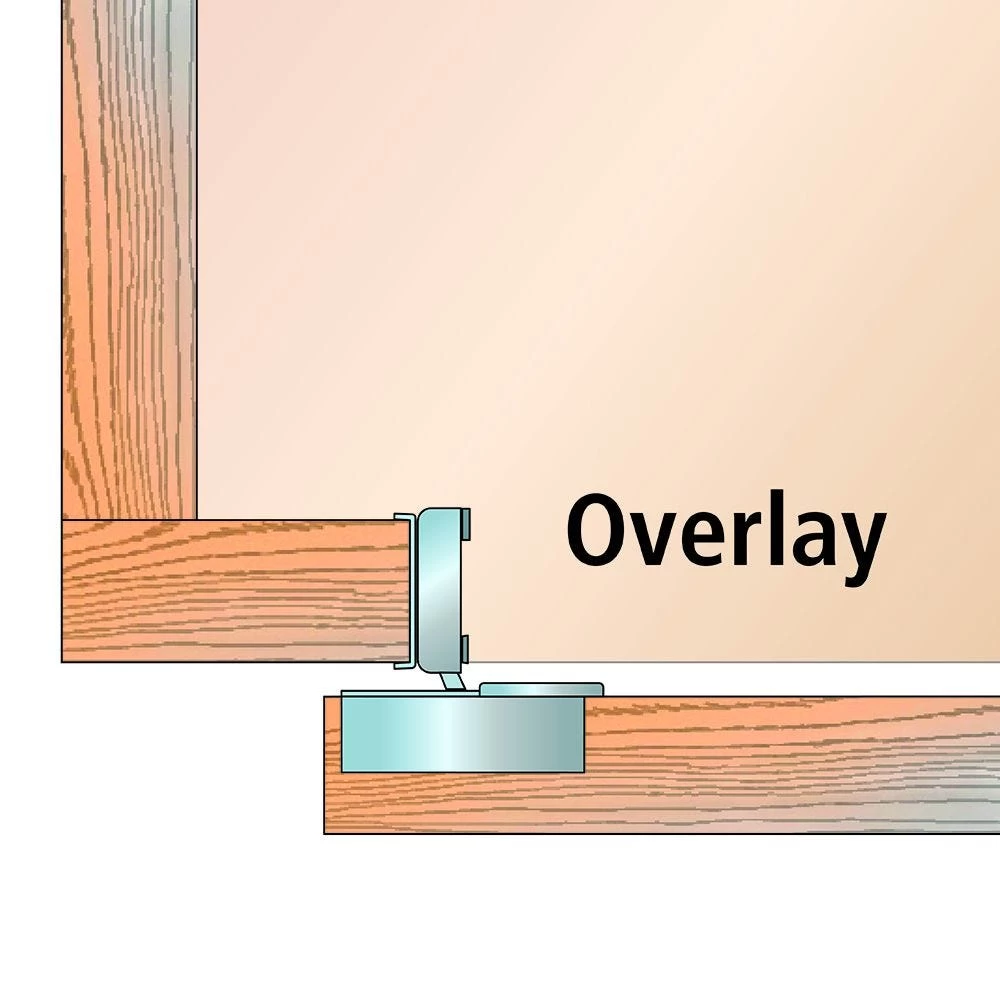

• Choose from overlays from 3/8” to 3/4” (see note at bottom on larger overlays)

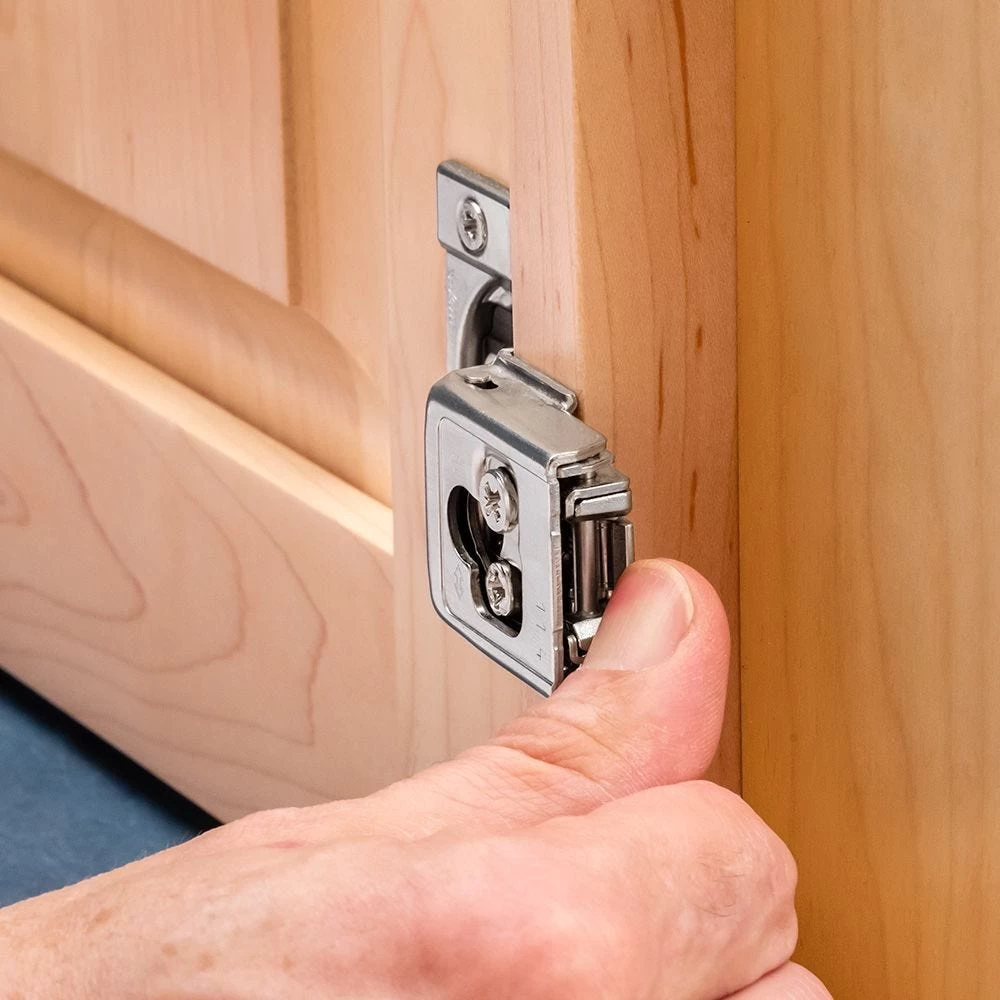

• Just pull the lever to clip the door on and off the cabinet for easy cleaning or finishing
• BLUMotion soft-close action is integrated into the hinge cup
• Each hinge has a soft-close deactivation switch for small/light doors
• Three-dimensional cam adjustments with directional arrows for easy adjustability
• Use on 3/4” face frame cabinets (#66831 can be used on face frames thicker than 3/4”, or on cabinets where the face frame is flush with the cabinet panel)
• Shallow 7/16” cup depth leaves more room for edge profile on doors without penetrating cup hole

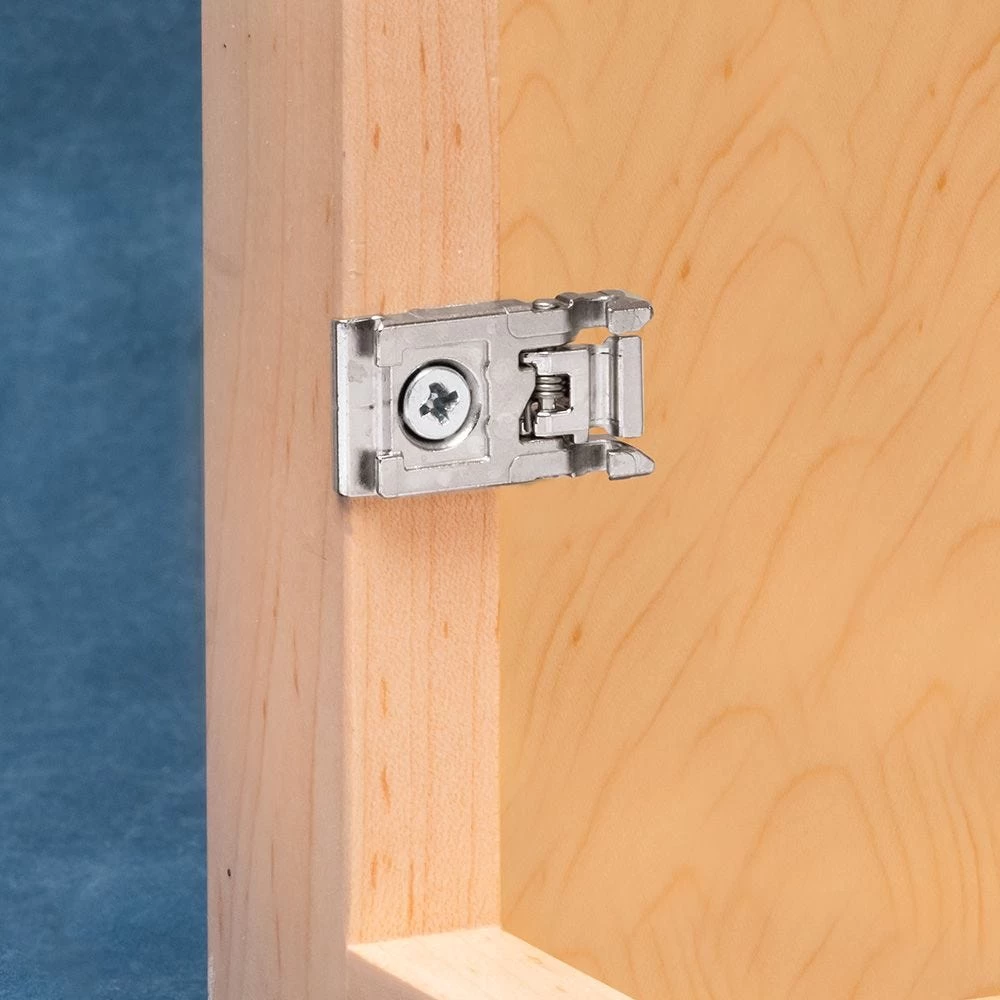

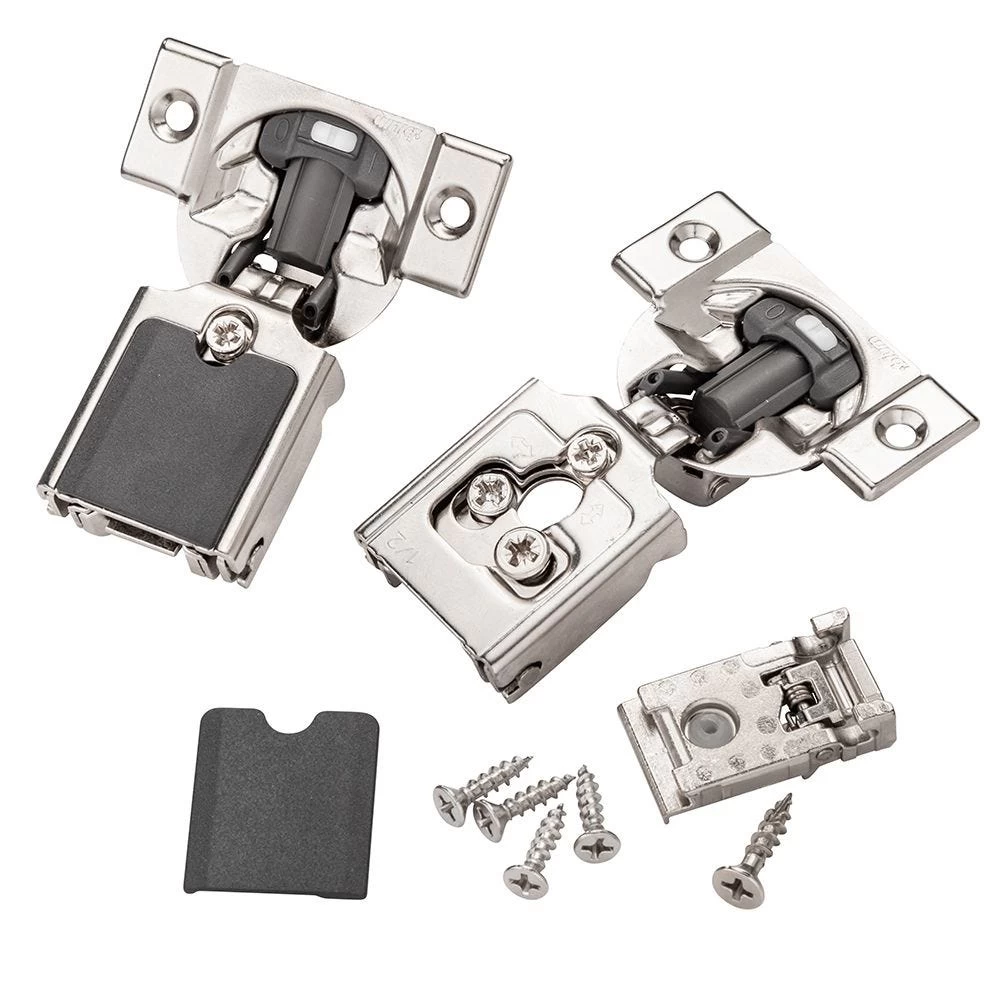

• Pre-mounted wood screw for fast installation onto the cabinet—just drive two screws!
• Includes hinge covers for a clean look

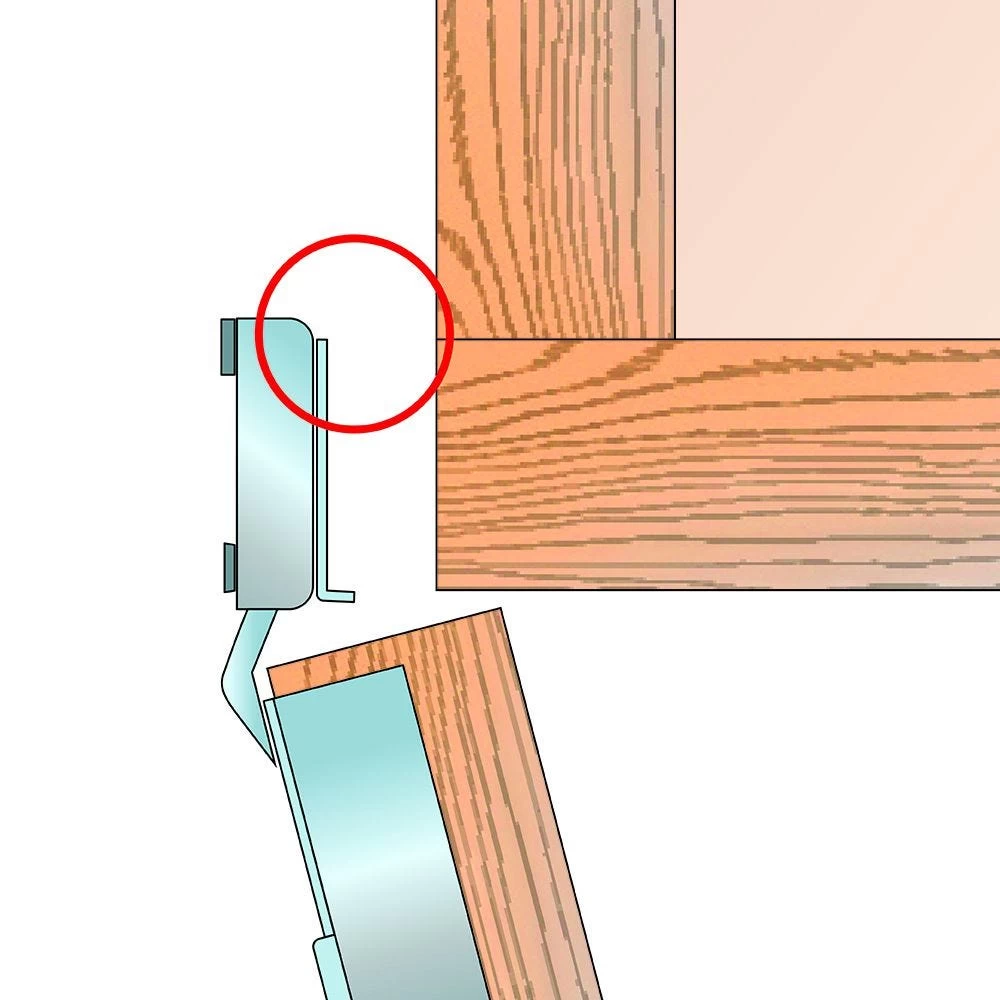

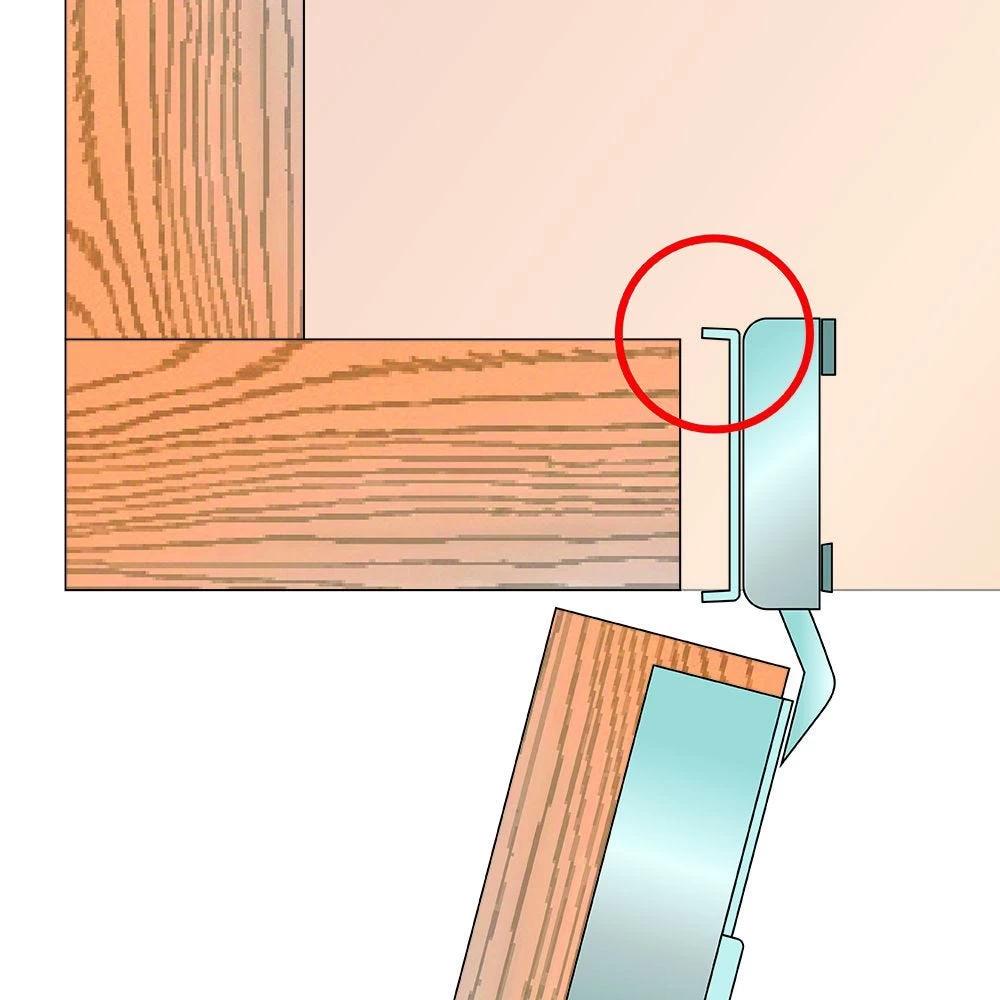

What’s different about #66831? Unlike the other hinges in the group, which straddle both sides of a 3/4” face frame, 66831 hooks over the face side of the face frame only. This enables it to be used on face frames thicker than 3/4”, or on cabinets where the face frame is flush with the cabinet panel.

Larger overlays also available! If you need the same features with a larger overlay (and a 110° opening angle), see e.g. #67120.

Note: Blum Restrictor Clips 38C315B3 (#47937, sold separately) are available for restricting the opening angle. This prevents the door from banging into adjacent cabinets or cabinet doors.
